Fully Customizable Surface Electrode Ion Trap Platform
Monolithic and Hybrid Integration of Advanced Technologies
Democratizing Access to State-of-the-Art Quantum Technology Platforms
General Overview
The Quantum Foundry Facility (Q2F) is an innovative initiative launched by Sandia National Laboratories, designed to propel advancements in quantum technology.

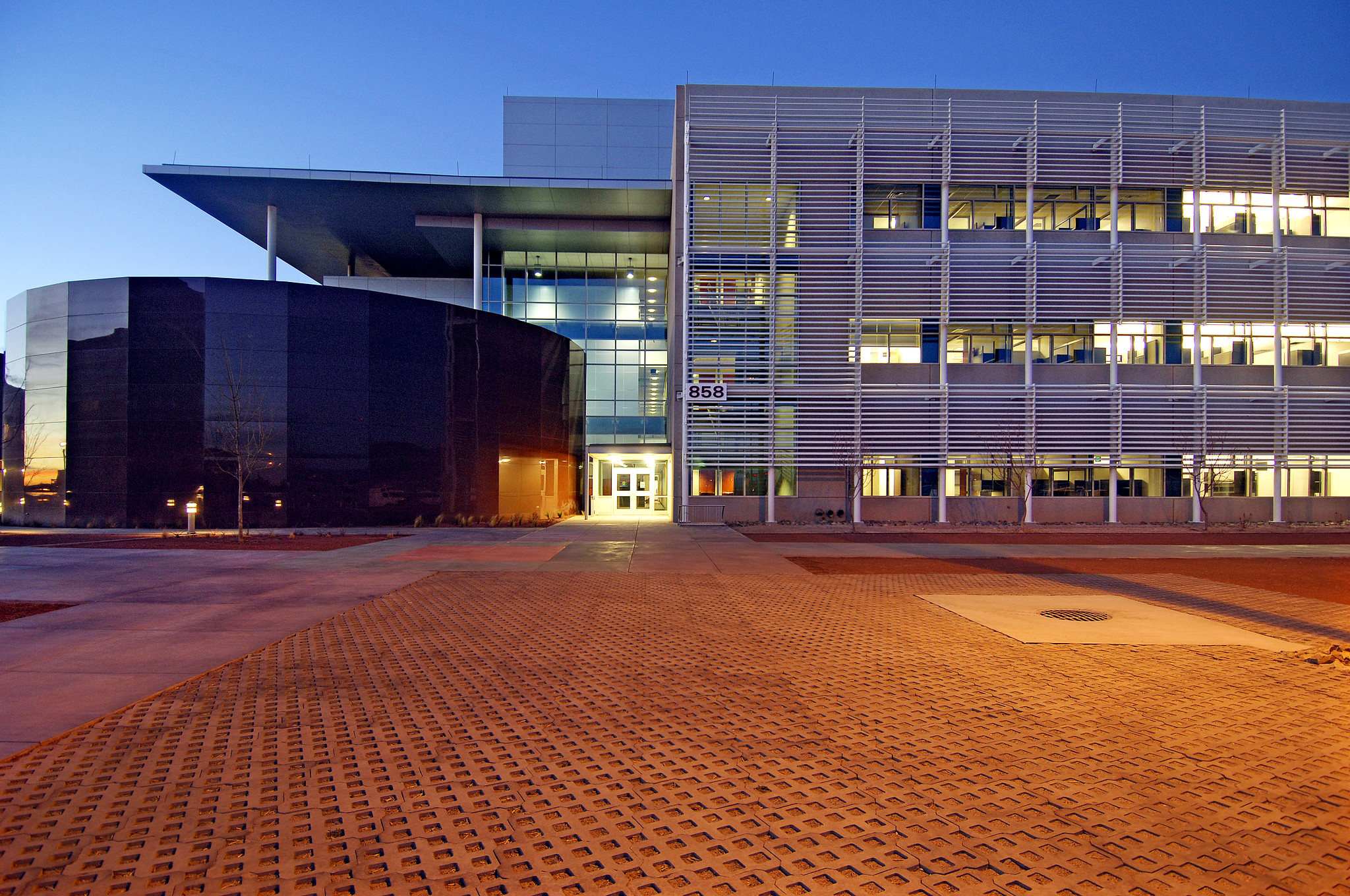

This project involves the strategic repurposing of lots within our Microsystems Engineering, Science and Applications (MESA) fabrication facility to democratize access to state-of-the-art quantum technology platforms.
What We Currently Offer

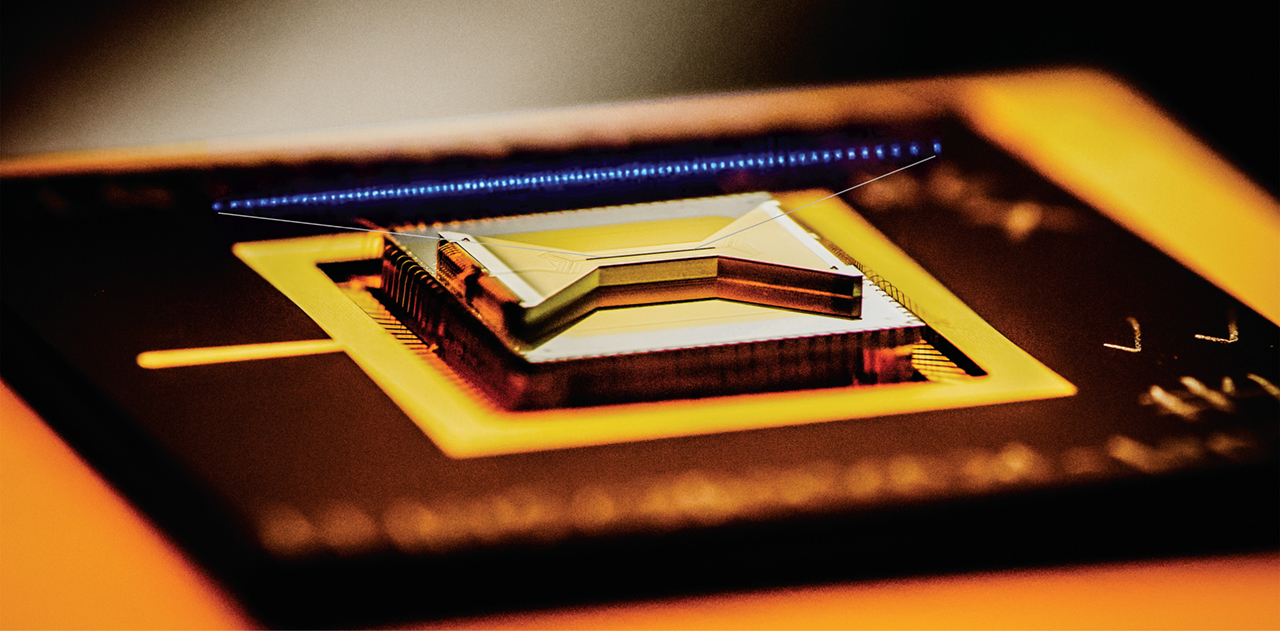

Q2F offers fully customizable surface electrode ion trap platform:
- High optical access “bow-tie” shape
- Backside loading holes
- Through trap loading slots
- Custom top-metal layout
- Hybrid integrated shunt capacitors
- 100 pin CPGA, LGA packages
- 10 mm x 6 mm standard design area
- Low-profile wirebonds to enable optical access
Design Submission is done through a design rule checked (DRC) error-free top metal .gds file hand-off between the customer and a Q2F point of contact. First tapeout launching Spring 2025.
Monolithic and hybrid integration of advanced technologies including:
- Custom layout and junction design
- Low loss waveguides (UV to NIR)
- High efficiency input/output optical couplers for beam delivery
- Photonic integrated circuits
- Optical interposers
- Optical modulators
- Single photon detectors III/V gain chips and custom epitaxy
We invite you to explore our innovative offerings. If you have any inquiries or questions regarding our offerings, please refer to the email below. We look forward to helping you enhance your operations with our solutions.
Contact Us
If you need an ion surface trap for your own R&D, please reach out at:
