Old ways transformed by new solution


Modern engineering brings water to livestock on the Navajo Nation

Image of water

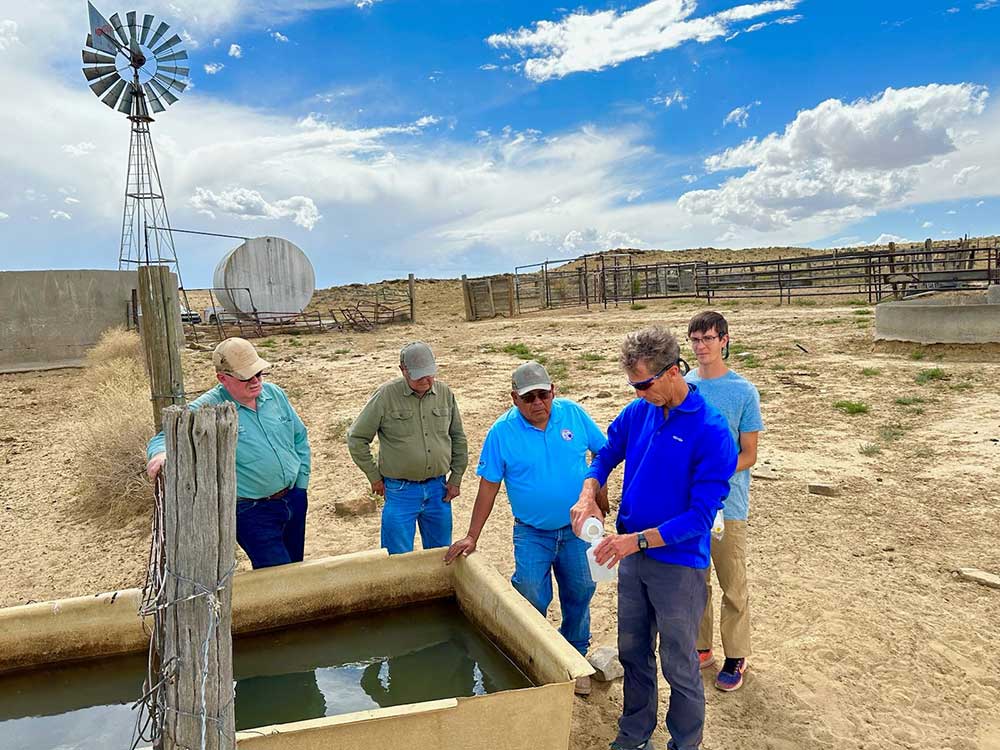

TESTING THE WATERS — From left, Mike Lisk, owner of Remote Well Solutions; Ferdinand Notah, Navajo Nation project lead; Larson Uentillie of the Navajo Nation Water Division; and Sandia geochemistry intern Sean Dwyer observe Sandia geotechnology systems engineer Brian Dwyer collect a water sample from a cattle drinker. (Photo courtesy of Brian Dwyer)

“They say water is life, and that couldn’t be truer,” said Anne Francis, who has spent her life on the Navajo Nation watching how water sustains the landscape, crops and herds of cattle on her family ranch.

But life on the Navajo Nation is hard.

The vast landscape is dotted with old-fashioned windmills, and many places are untouched by modern conveniences like electricity. Without the right infrastructure, getting water where it needs to go has been a struggle for generations. Sandia has partnered with New Mexico State University to develop a new technology that is changing this.

“We only had one watering point, a tank with a constantly running pump. Water often overflowed from the tank and went right back into the ground; it was a waste,” Francis said. “Then you had those poor cows — they had to walk miles and miles just to get water.”

It’s a challenge faced by most ranchers on the Navajo Nation. Animals typically stay near a water source if there is also food, so those areas are overgrazed. As a result, the cows have no alternative but to walk long distances, or the ranchers are forced to haul water long distances to them.

There is so much more land for them to graze, but without access to water, ranchers can’t sustain cattle in those areas. Former Navajo Nation Vice President Myron Lizer set out to solve this problem in July 2021.

After looking into several companies, Lizer found a partner in Remote Well Solutions LLC, a business owned by Corina and Mike Lisk of Cloudcroft that had developed a promising technology.

“We own a ranch in Lincoln County and know water challenges firsthand,” Mike Lisk said. “We felt very motivated to solve this problem; not just for ourselves but for others with the same struggles. No one needed it more than our Navajo neighbors.”

With the help of Sandia and the New Mexico State University Arrowhead Center, that technology was further developed, patented and embraced by Lizer and the Navajo Nation, becoming the focus of a pilot project in 2022.

“We’re taking what’s available with solar power right now and adding our technology to take it to the next level,” Lisk said.

Designing a solution

That technology is a simple controller operated by wind or solar energy. No electricity or batteries required.

“We take the water that is being pumped and put it in a storage tank. We then distribute it through the landscape using our controller and a network of piping,” Lisk said. “It can detect the tiniest change in pressure from a tank as far as five miles away and makes sure to keep those tanks full automatically.”

Image of water3

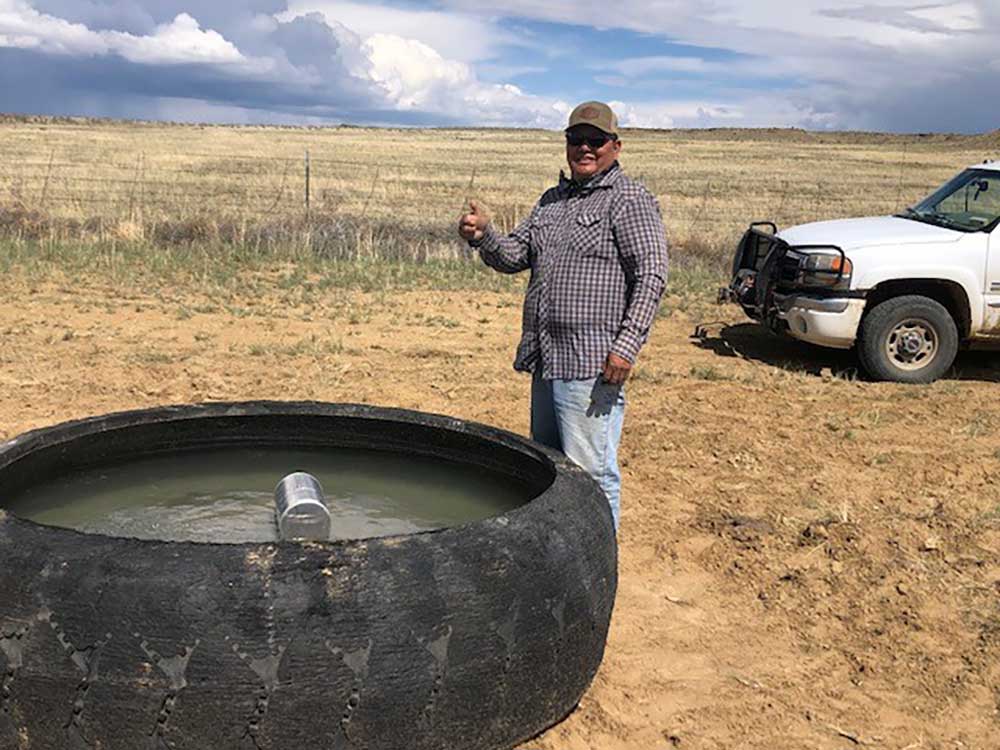

STAMP OF APPROVAL — Rancher Dean Gamble gives a thumbs up to new water pumping technology developed by Remote Well Solutions and Sandia that distributes water across his ranch on the Navajo Nation. (Photo courtesy of Mike Lisk)

Those tanks are all positioned at a high point so that the water flow can then be gravity fed and no more energy is required. It allows for drinkers to be set up every half-mile throughout the ranch.

It’s a system that is changing the way Navajo Nation ranches operate. No more hauling water, no more driving long distances every day and no more overgrazing.

It’s a project that is close to Lisk’s heart.

“I am a retired electrical engineer. I’ve worked on controls for my entire career, and we saw a need. I’ve lived in Farmington and Mountainair, and we’ve always been close to the Navajos,” he said. “The need out there is pretty obvious.”

Small business, big impact

When Lisk was inspired with this idea, he realized he couldn’t implement it alone. That is when he turned to Sandia and the New Mexico Small Business Assistance Program for some help.

This program is designed to provide New Mexico small businesses facing technical challenges access to Sandia and Los Alamos national laboratories’ expertise and capabilities at no cost. Remote Well Solutions secured a grant and work began.

“This started out with them basically wanting Sandia to look over their shoulder to check their work,” said Brian Dwyer, a systems engineer at Sandia who lent his expertise to the project. “Sandia didn’t design this system but checked on what they were doing and validated it to make sure it made sense.”

Brian, who has a background in civil and environmental engineering, has worked on other projects related to water and energy, making him a perfect fit.

“Some of our work involved testing for water quality and helping determine the best location for wells,” Brian said. “The wells must meet a certain quality standard for livestock. Sometimes you have an area where two wells are within a mile of each other but only one meets water standards. In some cases, we figured out a system to blend the water, so it still meets standards, and both can still be utilized.”

Brian says the Sandia team also supported the system’s economic analysis conducted by the Arrowhead Center. That analysis found that the system could at least double the number of cattle these ranches can sustain. A big reason the Navajo Nation has not adopted modern technology is because of the cost, but this system is an inexpensive solution.

To date, the team has installed four systems on the Navajo Nation with plans for more. The Navajo Nation has applied for a $25 million grant from the U.S. Department of Agriculture to pay for those additional systems.

Rewarding work

In the meantime, their work is changing lives.

For many, water is taken for granted. Not the case for the Navajo people, some of whom still live without running water in their homes.

For Francis and others, this system not only makes the work manageable, but it allows them to grow their ranches and make them profitable.

For many years, the Francis ranch could only sustain 45 head of cattle, and now they have double the herd. Other ranches expect to expand from 60 head to 300.

Image of water2

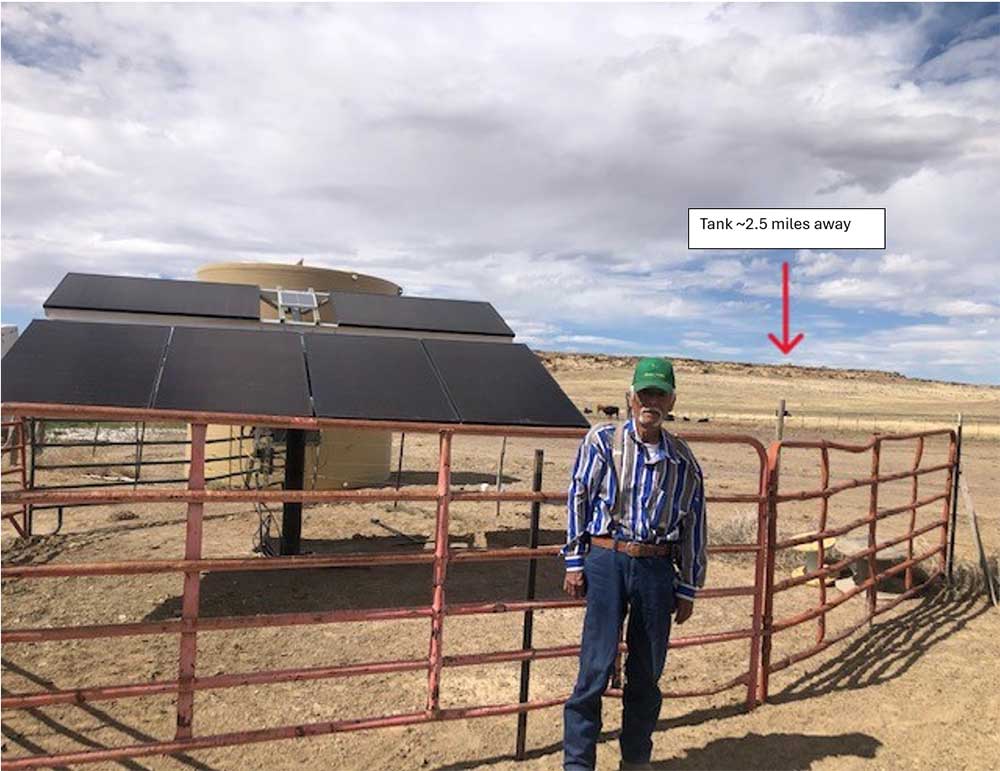

A GIFT TO HIS WIFE — Johny Francis sees the success of the new watering system on his ranch before his passing earlier this year. The arrow indicates the location of the tank that gravity feeds drinkers around the ranch. (Photo courtesy of Mike Lisk)

Francis got emotional as she talked about the project and her late husband Johny, who recently died.

“He never shared the whole story with me. He wanted to surprise me. I didn’t get to see the system until after he passed,” she said. “He had been working with the tribal ranch office for a long time to get this done.”

Francis, who is elderly, now depends on her daughter and son-in-law to run the family ranch. She said it couldn’t have come at a better time. “They live in Los Lunas, so he comes out every weekend to check on things. We have three grandboys, age 16-19, they come and help, but now they have to work less. I am so relieved I don’t have to worry about the cattle knowing they are cared for with water.”

Francis is not alone. Brian said the impact is obvious.

“I have been out there and met many of the people benefiting from this. They are so grateful,” Brian said. “I remember this older guy — he had to be 75 years old. After we installed the system and he saw what it could do, he started crying because he couldn’t believe it.”

“This is the most rewarding thing we’ve ever done,” Lisk said. “The person who benefits the most is the guy out on the ranch, the guy at the bottom. These people have been hauling water for generations. These are strong, hard men who have been ranching for 50 years. When they start to get emotional, you know this is a good thing.”

Charging ahead

Remote Well Solutions owner Mike Lisk and Sandia hope their work with the Navajo Nation is far from done. The next phase is to use this technology to bring water to homes on the Navajo Nation that don’t yet have it. The process will be more challenging because water standards are more stringent for humans, and it will be more expensive.

“We would have to likely install water treatment systems at each house,” Sandia systems engineer Brian Dwyer said. “It would be a challenge but it’s doable with the right engineering.”

A job well done

The Remote Well Solutions and Sandia project received the 2023 Honorable Speaker Ben Luján Award for Small Business Excellence by the New Mexico Small Business Assistance Program. Each year, the organization awards one project that has had the greatest economic benefit. The awards ceremony was held Sept. 11 at Santa Fe Brewing Company.
