Strategic Petroleum Reserve taps Sandia expertise in salt

Image of salt_600.png

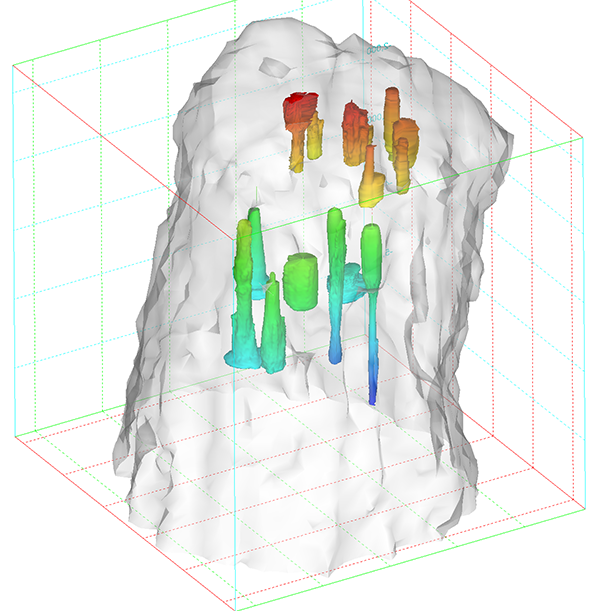

This 3-D image of the Bayou Choctaw salt dome, one of the areas that houses the nation’s Strategic Petroleum Reserve, shows caverns in the reserve, although not all of the caverns depicted hold oil. Sandia National Laboratories is the geotechnical adviser for the reserve. (Image courtesy of Dept. 6912)

Not all salt is created equal, so when the nation stockpiles oil in salt caverns, it’s important to know all about the salt itself, as well as the shape of the storage caverns.

Decades of Sandia expertise on how salt domes behave went into a recent report that concluded that DOE is justified in extending the life of the Strategic Petroleum Reserve (SPR). The Government Accountability Office will recommend an optimal size to Congress.

The report, “Long-Term Strategic Review of the US Strategic Petroleum Reserve,” analyzed the reserve’s capability to be tapped, or drawn down, and how that figures into future storage decisions. Sandia estimated the number of potential drawdowns per cavern, using computer models that consider such factors as cavern shape, relationship to surrounding caverns and salt movement, or creep, and how such parameters ultimately affect a cavern’s stability.

Calculating the number of drawdowns left was particularly important, says geologist Anna Lord, Sandia project manager for the SPR. The number of times each cavern can still be tapped into impacts overall design storage capacity decisions, including whether new caverns would be needed, she says.

When the president calls up and says, ‘We need to release X amount of oil,’ they need to be ready to do that . . .

The SPR was established after the 1973 oil embargo to protect the United States from severe oil supply interruptions and to meet its obligations under the International Energy Program.

DOE brought in Sandia five years later. The Labs became geotechnical adviser in 1980, responsible for characterizing the site, including cavern and well development, geomechanical analysis, the integrity of caverns and wells, subsidence, and monitoring.

Oil tapped at president’s order

The SPR operates four major storage facilities in the underground salt domes of the Gulf Coast, two in Louisiana and two in Texas. The stockpile of government-owned crude oil can be tapped at the president’s order when an emergency disrupts commercial oil supplies.

“When the president calls up and says, ‘We need to release X amount of oil,’ they need to be ready to do that at a certain rate and a certain amount a day,” Anna says. “All the work we do goes toward making sure they’re able to do that.”

Sandia’s work falls into two areas: geotechnical, which involves updating geologic understanding of the salt domes, modeling the caverns’ geomechanical behavior and assuring the integrity of caverns and wells drilled into them; and engineering, which includes understanding fluid behavior, analyzing the leaching process that occurs during oil removal, and assuring the SPR meets environmental, safety, and oil quality requirements.

Studying well integrity is one of Sandia’s most important responsibilities, Anna says. Think of wells as a series of casings inside each other like concentric circles, with each smaller well deeper than the larger one above. The column of casing, called a string, acts as a protective barrier — if one concentric circle goes, others remain.

Well failure could cause oil to leak into the environment, and a well that loses integrity can’t be used to pull oil out.

Sandia’s team analyzes well integrity through hydrostatic column computer modeling. SPR operators send nitrogen gas down the wells to test whether they’re losing pressure, and the Sandia models provide rates and locations of any nitrogen leaks. A nitrogen leak does not necessarily mean the well will leak oil, so the model differentiates between pressure changes caused by nitrogen flow versus oil flow. Pressure tests can indicate “when do we worry, when do we need to do remediation?” Anna says.

Geology becomes deciding factor

“No one’s ever looked at this before, so we started a program to really try to understand what’s going on behind the well. We’ve come up with a model that can tell us what the leak rates are and where those leaks may be,” she says. “We’re getting into the new area of what’s going on behind the scenes.

“There are well integrity issues everywhere, not just at the SPR. This happens anywhere with aging infrastructure. Geology takes over; engineering doesn’t matter.”

Oil is removed by injecting fresh water into the brine stored at the bottom of the caverns, pushing out oil floating above the brine. But fresh water dissolves salt, changing the caverns’ shape.

Geology takes over; engineering doesn’t matter.

“So we do studies to see where the water will change it, how much it will change it, does that new shape affect stability?” Anna says.

Each cavern was meant to be emptied five times. However, emptying a cavern makes it larger because the fresh water dissolves some of the salt. Sandia’s geomechanical modeling shows, for example, “oh, you really only have three drawdowns in this cavern, you have a full five in this one, but you have none in this one, and if you take all the oil out of this one you cannot use that cavern again,” Anna says.

Making sure caverns are optimal shape

When the SPR started, the government wanted to store oil as quickly as possible, and bought caverns the petrochemical industry had used. The SPR still uses some of those, but most oil today is stored in caverns the DOE created with Sandia’s feedback.

“Different domes behave differently,” Anna explains. “Maybe they have higher creep rates than other domes. It depends on how homogenous it is. Is it pure salt or is it salt with shale or other impurities mixed in, such as anhydrite?”

SPR managers can’t create a cavern simply by pumping in fresh water — the configuration of injection wells helps create the desired shape. Sandia researchers determine salt properties in an area by analyzing impurities and doing stress and strain testing, and they model different leaching well configurations. From the model, they can determine how leaching will affect the cavern’s shape. They know from past studies what a cavern should look like for continued integrity.

Sandia also makes recommendations for cavern operations based on their size and shape. Salt creeping to close voids causes stresses and strains on caverns and wells. Sandia’s geomechanical modeling predicts where those might occur and whether they’ll create a problem.

The team stepped up well and cavern integrity modeling in the past couple of years, collecting and analyzing existing data to see what’s going on and how one cavern’s operation affects a neighboring cavern. “We’re trying to bring all the pictures together into one holistic story,” Anna says.
