A Profile object based on values interpolated from nearby GridProfile objects. More...

#include <InterpolatedProfile.h>

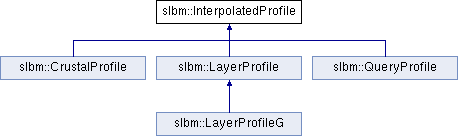

Inheritance diagram for slbm::InterpolatedProfile:

Public Member Functions
	InterpolatedProfile ()
	Default constructor. More...

	InterpolatedProfile (Grid &grid, Location &location)
	Parameterized constructor. More...

	InterpolatedProfile (const InterpolatedProfile &other)
	Copy constructor. More...

virtual	~InterpolatedProfile ()
	Destructor. More...

InterpolatedProfile &	operator= (const InterpolatedProfile &other)
	Equal operator. More...

bool	operator== (const InterpolatedProfile &other)
	Equality operator. More...

bool	operator!= (const InterpolatedProfile &other)
	Inequality operator. More...

int	getNCoefficients ()

vector< GridProfile * > &	getNodes ()
	Retrieve a list of pointers to the GridProfile objects upon which this InterpolatedProfile is dependent. More...

GridProfile *	getNode (const int &i)

vector< int > &	getNodeIds ()

int	getNodeId (const int &i)

vector< double > &	getCoefficients ()
	Retrieve the interpolation coefficients that define the dependency of this InterpolatedProfile on its neighbors. More...

double	getCoefficient (const int &i)

void	getNodeIds (int *nodeIds, int &size)
	Retrieve the ID numbers of the GridProfiles that contributed to the interpolated values at this InterpolatedProfile object. More...

void	getCoefficients (double *coeff, int &size)
	Retrieve the interpolation coefficients that were applied to the neighboring GridProfiles that contributed to the interpolated values at this InterpolatedProfile object. More...

void	getWeights (int nodeIds, double coeff, int &size)

void	interpRadius (const int &k, double &radius)
	Calculate a single radius value based on the neighboring GridProfile objects and the interpolation coefficients. More...

void	interpDepth (const int &k, double &depth)
	Calculate a single depth value based on the neighboring GridProfile objects and the interpolation coefficients. More...

void	interpVelocity (const int &type, const int &k, double &velocity)
	Calculate a single velocity value based on the neighboring GridProfile objects and the interpolation coefficients. More...

void	interpGradient (const int &type, double &gradient)
	Calculate a single gradient value based on the neighboring GridProfile objects and the interpolation coefficients. More...

bool	isActiveProfile ()
	Returns true if all of the neighboring GridProfile objects. More...

virtual size_t	memSize ()

Static Public Member Functions
static int	getClassCount ()

Protected Attributes
vector< GridProfile * >	nodes
	An array of pointers to the GridProfile objects upon which this InterpolatedProfile is dependent. More...

vector< int >	nodeIds
	An array of pointers to the GridProfile objects upon which this InterpolatedProfile is dependent. More...

vector< double >	coefficients
	The interpolation coefficients which should be applied to this InterpolatedProfile's neighbors in order to compute interpolated quantities. More...

Static Protected Attributes
static int	interpolatedProfileClassCount

Detailed Description

A Profile object based on values interpolated from nearby GridProfile objects.

The InterpolatedProfile class represents a Profile based on depth, velocity and gradient values interpolated from values from nearby GridProfile objects.

An InterpolatedProfile object is not particularly useful since it does not own any containers to store depth, velocity and gradient information. CrustalProfile, LayerProfile and QueryProfile objects are derived off of InterpolatedProfile class and provide that functionality.

Definition at line 56 of file InterpolatedProfile.h.

Constructor & Destructor Documentation

◆ InterpolatedProfile() [1/3]

slbm::InterpolatedProfile::InterpolatedProfile ( )

Default constructor.

◆ InterpolatedProfile() [2/3]

slbm::InterpolatedProfile::InterpolatedProfile	(	Grid &	grid,
		Location &	location
	)

Parameterized constructor.

Parameterized constructor that sets up a Profile object based on values interpolated from nearby GridProfile objects.

Parameters

grid	a reference to the Grid object. Grid::findProfile() will be called to retrieve the neighbors and interpolation coefficients.
location	the Location where the profile is to be constructed

◆ InterpolatedProfile() [3/3]

slbm::InterpolatedProfile::InterpolatedProfile ( const InterpolatedProfile & other )

Copy constructor.

◆ ~InterpolatedProfile()

virtual slbm::InterpolatedProfile::~InterpolatedProfile ( )

virtual

Destructor.

Member Function Documentation

◆ getClassCount()

static int slbm::InterpolatedProfile::getClassCount ( )

static

◆ getCoefficient()

double slbm::InterpolatedProfile::getCoefficient ( const int & i )

inline

Definition at line 134 of file InterpolatedProfile.h.

◆ getCoefficients() [1/2]

vector<double>& slbm::InterpolatedProfile::getCoefficients ( )

inline

Retrieve the interpolation coefficients that define the dependency of this InterpolatedProfile on its neighbors.

Retrieve the interpolation coefficients that define the dependency of this InterpolatedProfile on its neighbors. The calling application is given a const reference to the double array of values owned by this InterpolatedProfile object. There will be SLBMGlobals::nCoefficients elements.

Definition at line 132 of file InterpolatedProfile.h.

◆ getCoefficients() [2/2]

void slbm::InterpolatedProfile::getCoefficients	(	double *	coeff,
		int &	size
	)

inline

Retrieve the interpolation coefficients that were applied to the neighboring GridProfiles that contributed to the interpolated values at this InterpolatedProfile object.

Retrieve the interpolation coefficients that were applied to the neighboring GridProfiles that contributed to the interpolated values at this InterpolatedProfile object. It is the responsibility of the caller to supply a double array large enough to hold the requested values. There will be SLBMGlobals::nCoefficients elements.

Definition at line 258 of file InterpolatedProfile.h.

◆ getNCoefficients()

int slbm::InterpolatedProfile::getNCoefficients ( )

inline

Definition at line 109 of file InterpolatedProfile.h.

◆ getNode()

GridProfile* slbm::InterpolatedProfile::getNode ( const int & i )

inline

Definition at line 118 of file InterpolatedProfile.h.

◆ getNodeId()

int slbm::InterpolatedProfile::getNodeId ( const int & i )

inline

Definition at line 122 of file InterpolatedProfile.h.

◆ getNodeIds() [1/2]

vector<int>& slbm::InterpolatedProfile::getNodeIds ( )

inline

Definition at line 120 of file InterpolatedProfile.h.

◆ getNodeIds() [2/2]

void slbm::InterpolatedProfile::getNodeIds	(	int *	nodeIds,
		int &	size
	)

inline

Retrieve the ID numbers of the GridProfiles that contributed to the interpolated values at this InterpolatedProfile object.

Retrieve the ID numbers of the GridProfiles that contributed to the interpolated values at this InterpolatedProfile object. It is the responsibility of the caller to supply an int array large enough to hold the requested values. There will be SLBMGlobals::nCoefficients elements.

Definition at line 251 of file InterpolatedProfile.h.

◆ getNodes()

vector<GridProfile*>& slbm::InterpolatedProfile::getNodes ( )

inline

Retrieve a list of pointers to the GridProfile objects upon which this InterpolatedProfile is dependent.

Definition at line 116 of file InterpolatedProfile.h.

◆ getWeights()

void slbm::InterpolatedProfile::getWeights	(	int *	nodeIds,
		double *	coeff,
		int &	size
	)

inline

Definition at line 241 of file InterpolatedProfile.h.

◆ interpDepth()

void slbm::InterpolatedProfile::interpDepth	(	const int &	k,
		double &	depth
	)

inline

Calculate a single depth value based on the neighboring GridProfile objects and the interpolation coefficients.

Parameters

k	the interval id of the desired radius.
depth	the interpolated depth value, in km.

Definition at line 272 of file InterpolatedProfile.h.

◆ interpGradient()

void slbm::InterpolatedProfile::interpGradient	(	const int &	type,
		double &	gradient
	)

inline

Calculate a single gradient value based on the neighboring GridProfile objects and the interpolation coefficients.

Parameters

type	either SLBMGlobals::PWAVE or SLBMGlobals::SWAVE.
gradient	the interpolated gradient value, in 1/sec.

Definition at line 286 of file InterpolatedProfile.h.

◆ interpRadius()

void slbm::InterpolatedProfile::interpRadius	(	const int &	k,
		double &	radius
	)

inline

Calculate a single radius value based on the neighboring GridProfile objects and the interpolation coefficients.

Parameters

k	the interval id of the desired radius.
radius	the interpolated radius value, in km.

Definition at line 265 of file InterpolatedProfile.h.

◆ interpVelocity()

void slbm::InterpolatedProfile::interpVelocity	(	const int &	type,
		const int &	k,
		double &	velocity
	)

inline

Calculate a single velocity value based on the neighboring GridProfile objects and the interpolation coefficients.

Parameters

type	either SLBMGlobals::PWAVE or SLBMGlobals::SWAVE.
k	the interval id of the desired velocity.
velocity	the interpolated velocity value, in km/sec.

Definition at line 279 of file InterpolatedProfile.h.

◆ isActiveProfile()

bool slbm::InterpolatedProfile::isActiveProfile ( )

inline

Returns true if all of the neighboring GridProfile objects.

are active nodes.

Returns true if all of the neighboring GridProfile objects are active nodes.

Definition at line 293 of file InterpolatedProfile.h.

◆ memSize()

virtual size_t slbm::InterpolatedProfile::memSize ( )

virtual

Reimplemented in slbm::LayerProfileG, slbm::LayerProfile, and slbm::CrustalProfile.

◆ operator!=()

bool slbm::InterpolatedProfile::operator!= ( const InterpolatedProfile & other )

inline

Inequality operator.

Definition at line 107 of file InterpolatedProfile.h.

◆ operator=()

InterpolatedProfile& slbm::InterpolatedProfile::operator= ( const InterpolatedProfile & other )

Equal operator.

◆ operator==()

bool slbm::InterpolatedProfile::operator== ( const InterpolatedProfile & other )

Equality operator.

Member Data Documentation

◆ coefficients

vector<double> slbm::InterpolatedProfile::coefficients

protected

The interpolation coefficients which should be applied to this InterpolatedProfile's neighbors in order to compute interpolated quantities.

Definition at line 231 of file InterpolatedProfile.h.

◆ interpolatedProfileClassCount

int slbm::InterpolatedProfile::interpolatedProfileClassCount

staticprotected

Definition at line 210 of file InterpolatedProfile.h.

◆ nodeIds

vector<int> slbm::InterpolatedProfile::nodeIds

protected

An array of pointers to the GridProfile objects upon which this InterpolatedProfile is dependent.

Definition at line 224 of file InterpolatedProfile.h.

◆ nodes

vector<GridProfile*> slbm::InterpolatedProfile::nodes

protected

An array of pointers to the GridProfile objects upon which this InterpolatedProfile is dependent.

Definition at line 217 of file InterpolatedProfile.h.

The documentation for this class was generated from the following file:

rstt/SLBM/include/InterpolatedProfile.h
