Manages all information related to a single node in a Grid object. More...

#include <GridProfile.h>

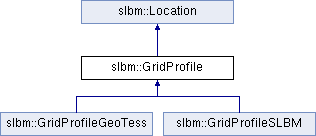

Inheritance diagram for slbm::GridProfile:

Public Member Functions
	GridProfile ()

	GridProfile (const int &i, const double &lat, const double &lon, const double &elev)

	GridProfile (const int &i, Location &location)

virtual	~GridProfile ()
	Destructor. More...

const int	getNodeId () const
	Retrieve the node index of this node in the model grid. More...

virtual int	getGeoStackId ()
	Retrieve the index of the GeoStack that holds the information about model interfaces, velocities and gradients. More...

virtual double	getEarthRadius ()

virtual void	getData (double depths, double pvelocity, double svelocity, double gradient)
	Retrieve all the data associated with this Profile. More...

virtual void	setData (double depths, double pvelocities, double svelocities, double gradients)
	Set the P and S velocities and gradients associated with this GridProfile object to specified values. More...

virtual void	setDepths (const vector< double > &depths)
	Set the layer depths to specified values. More...

virtual void	setVelocity (const int &waveType, const vector< double > &velocity)
	Set the P or S velocity to specified values. More...

virtual void	setGradient (const vector< double > &gradient)
	Set the P and S velocity gradients to specified values. More...

virtual double	getInterfaceRadius (const int &k)
	Retrieve the radius of the k'th interval, in km. More...

virtual double	getInterfaceDepth (const int &k)
	Retrieve the depth of the k'th interval, in km relative sea level. More...

virtual double	getVelocity (const int &waveType, const int &k)
	Retrieve the P or S velocity of the k'th interval, in km/sec. More...

virtual double	getMantleGradient (const int &waveType)
	Retrieve the P or S velocity gradient in the mantle, in 1/sec. More...

virtual void	getInterfaceDepths (vector< double > &depths)
	Retrieve the depths of all intervals, in km. More...

virtual void	getVelocity (const int &waveType, double *velocity)
	Retrieve the P or S velocities of all intervals, in km/sec. More...

virtual void	getMantleGradient (double *gradients)
	Retrieve the P and S velocity gradients in the mantle, in 1/sec. More...

virtual double	getWaterThick ()

double	getWeight ()
	A temporary weight storage assignment function (returned reference) used exclusively by the GreatCircle::getWeights(...) function. More...

void	addWeight (const double &w)

void	setWeight (const double &w)

void	clearHitCount ()

void	incrementHitCount ()

int	getHitCount ()

int	getActiveNodeId ()

void	setActiveNodeId (int id)

void	depthsToRadii (double depths[NLAYERS], vector< vector< float > > &radii)

void	depthsToRadii (const vector< double > &depths, vector< vector< float > > &radii)

Public Member Functions inherited from slbm::Location
	Location ()

virtual	~Location ()

	Location (const Location &location)

	Location (const double &lat, const double &lon, const double &depth=0)

	Location (const double v[], const double &radius)

	Location (const Location &loc1, const Location &loc2)

Location &	operator= (const Location &other)

bool	operator== (const Location &other) const

bool	operator!= (const Location &other)

string	toString () const

void	setLocation (const double &lat, const double &lon, const double &depth)

void	setLocation (const double *u, const double &r)

void	setRadius (const double &r)

double	getRadius () const

double	getEarthRadius () const

double	getDepth () const

void	setDepth (const double &depth)

double	distance (const Location &other) const

double	distanceKm (Location &other) const

double	distanceDegrees (const Location &other) const

double	azimuth (const Location &other) const
	Find the azimuth from this Location to some other Location. Result will be between 0 and 2*PI radians. More...

double	azimuthDegrees (const Location &other) const
	Find the azimuth from this Location to some other Location. Result will be between 0 and 360 degrees. More...

double	azimuth (const Location &other, const double &errorValue) const
	Find the azimuth from this Location to some other Location. Result will be between 0 and 2*PI radians. If current position is the north or south pole, or if current position and other position are conincident, returns specified errorValue. More...

double	azimuthDegrees (const Location &other, const double &errorValue) const
	Find the azimuth from this Location to some other Location. Result will be between 0 and 360 degrees. If current position is the north or south pole, or if current position and other position are conincident, returns specified errorValue. More...

double	getLat () const
	Retrieve the geographic latitude of this Location, radians. More...

double	getGeocentricLat () const
	Retrieve the geocentric latitude of this Location, radians. More...

double	getGeocentricLatDegrees () const
	Retrieve the geocentric latitude of this Location, degrees. More...

double	getLon () const
	Retrieve the longitude of this Location. Value will be between -PI and PI radians. More...

double	getLatDegrees () const
	Retrieve the geographic latitude of this Location, degrees. More...

double	getLonDegrees () const
	Retrieve the longitude of this Location. Value will be between -180 and 180 degrees. More...

const double *	getUnitVector ()

void	getUnitVector (double x[3])

void	setUnitVector (double x[3])

void	move (const double &azimuth, const double &distance, Location &loc) const
	Retrieve a Location that is a specified distance away from this Location, in a specified direction. More...

bool	cross (const Location &x, Location &loc) const

void	rotate (Location &pole, double angle, Location &loc) const

bool	vectorTripleProduct (const Location &other, double vtp[]) const
	Compute the vector triple product (this x other) x this, normalized to unit length. Returns true if valid, false if triple product has zero length, which will happen when this and other are coincident or PI radians apart. More...

void	move (const double vtp[], const double &a, Location &loc) const
	Move this Location object a specified angular distance (radians) in the direction specified by vtp. More...

void	move_north (const double x[], const double &distance, double z[]) const

void	move_north (const double &distance, Location &loc) const

void	rotate (const double x[], const double p[], const double &a, double z[]) const

double	scalarTripleProduct (const Location &loc1, const Location &loc2) const

double	scalarTripleProduct (const double u[], const double w[]) const

double	scalarTripleProduct (const double u[], const double v[], const double w[]) const

bool	vectorTripleProduct (const double u[], const double v[], double vtp[]) const
	Compute the normalized vector triple product (u x v) x u and and store result in vtp. More...

bool	vectorTripleProductNorthPole (const double u[], double w[]) const
	Compute the normalized vector triple product (u x northPole) x u and store result in w. Returns true if w has finite length, false if length(w) is zero. More...

void	move (const double v[], const double vtp[], const double &a, double u[]) const
	Move unit vector v in direction of vtp by distance a and store result in u. vtp is assumed to be a unit vector normal to v. More...

double	angle (const double u[], const double v[]) const

double	dot (const Location &other) const

double	dot (const double u[], const double v[]) const

double	cross (const double u[], const double v[], double w[]) const

double	crossNorth (const double u[], double w[]) const

double	normalize (double v[]) const

double	length (const double v[]) const

Static Public Member Functions
static string	class_name ()

static int	getClassCount ()

Static Public Member Functions inherited from slbm::Location
static int	getClassCount ()

Protected Attributes
int	nodeId
	The node id of this GridProfile. More...

int	activeNodeId

double	weight
	A temporary weight storage location used exclusively by the GreatCircle::getWeights(...) function. More...

int	nHits
	The number of times this node has been 'touched' by a GreatCircle. More...

double	earthRadius

Protected Attributes inherited from slbm::Location
double	v [3]

double	radius

Static Protected Attributes
static int	gridProfileClassCount

Static Protected Attributes inherited from slbm::Location
static int	locationClassCount

Additional Inherited Members
Static Public Attributes inherited from slbm::Location
static double	EARTH_RADIUS

Detailed Description

Manages all information related to a single node in a Grid object.

Manages all information related to a single node in a Grid object including: the Location of the node, the depths of all model interfaces, the P and S velocities of each model interval, and the P and S velocity gradients in the mantle.

GridProfile objects are created in Grid::loadVelocityModel() and deleted in Grid::~Grid.

Definition at line 61 of file GridProfile.h.

Constructor & Destructor Documentation

◆ GridProfile() [1/3]

slbm::GridProfile::GridProfile ( )

inline

Definition at line 75 of file GridProfile.h.

◆ GridProfile() [2/3]

slbm::GridProfile::GridProfile	(	const int &	i,
		const double &	lat,
		const double &	lon,
		const double &	elev
	)

◆ GridProfile() [3/3]

slbm::GridProfile::GridProfile	(	const int &	i,
		Location &	location
	)

◆ ~GridProfile()

virtual slbm::GridProfile::~GridProfile ( )

virtual

Destructor.

Member Function Documentation

◆ addWeight()

void slbm::GridProfile::addWeight ( const double & w )

inline

Definition at line 204 of file GridProfile.h.

◆ class_name()

static string slbm::GridProfile::class_name ( )

inlinestatic

Returns the class name.

Definition at line 89 of file GridProfile.h.

◆ clearHitCount()

void slbm::GridProfile::clearHitCount ( )

inline

Definition at line 208 of file GridProfile.h.

◆ depthsToRadii() [1/2]

void slbm::GridProfile::depthsToRadii	(	const vector< double > &	depths,
		vector< vector< float > > &	radii
	)

◆ depthsToRadii() [2/2]

void slbm::GridProfile::depthsToRadii	(	double	depths[NLAYERS],
		vector< vector< float > > &	radii
	)

◆ getActiveNodeId()

int slbm::GridProfile::getActiveNodeId ( )

inline

Definition at line 214 of file GridProfile.h.

◆ getClassCount()

static int slbm::GridProfile::getClassCount ( )

static

◆ getData()

virtual void slbm::GridProfile::getData	(	double *	depths,
		double *	pvelocity,
		double *	svelocity,
		double *	gradient
	)

virtual

Retrieve all the data associated with this Profile.

Parameters

depths	the depths of the top of each interval associated with this Profile.
pvelocity	the P velocities of each interval, in km/sec.
svelocity	the S velocities of each interval, in km/sec.
gradient	a 2-element array specifying the P and S velocity gradient in the mantle, in 1/sec.

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ getEarthRadius()

virtual double slbm::GridProfile::getEarthRadius ( )

inlinevirtual

Definition at line 105 of file GridProfile.h.

◆ getGeoStackId()

virtual int slbm::GridProfile::getGeoStackId ( )

virtual

Retrieve the index of the GeoStack that holds the information about model interfaces, velocities and gradients.

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ getHitCount()

int slbm::GridProfile::getHitCount ( )

inline

Definition at line 212 of file GridProfile.h.

◆ getInterfaceDepth()

virtual double slbm::GridProfile::getInterfaceDepth ( const int & k )

virtual

Retrieve the depth of the k'th interval, in km relative sea level.

brief Retrieve the depth of the k'th interval, in km relative sea level.

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ getInterfaceDepths()

virtual void slbm::GridProfile::getInterfaceDepths ( vector< double > & depths )

virtual

Retrieve the depths of all intervals, in km.

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ getInterfaceRadius()

virtual double slbm::GridProfile::getInterfaceRadius ( const int & k )

virtual

Retrieve the radius of the k'th interval, in km.

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ getMantleGradient() [1/2]

virtual double slbm::GridProfile::getMantleGradient ( const int & waveType )

virtual

Retrieve the P or S velocity gradient in the mantle, in 1/sec.

Parameters

waveType either SLBMGlobals::PWAVE or SLBMGlobals::SWAVE.

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ getMantleGradient() [2/2]

virtual void slbm::GridProfile::getMantleGradient ( double * gradients )

virtual

Retrieve the P and S velocity gradients in the mantle, in 1/sec.

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ getNodeId()

const int slbm::GridProfile::getNodeId ( ) const

inline

Retrieve the node index of this node in the model grid.

Definition at line 94 of file GridProfile.h.

◆ getVelocity() [1/2]

virtual double slbm::GridProfile::getVelocity	(	const int &	waveType,
		const int &	k
	)

virtual

Retrieve the P or S velocity of the k'th interval, in km/sec.

Retrieve the P or S velocity of the k'th interverroral, in km/sec.

Parameters

waveType	either SLBMGlobals::PWAVE or SLBMGlobals::SWAVE.
k	the index of the desired interval. The shallowest interval is index 0.

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ getVelocity() [2/2]

virtual void slbm::GridProfile::getVelocity	(	const int &	waveType,
		double *	velocity
	)

virtual

Retrieve the P or S velocities of all intervals, in km/sec.

Parameters

waveType	either SLBMGlobals::PWAVE or SLBMGlobals::SWAVE.
velocity	(output) the P or S velocity of all the intervals, in km/sec

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ getWaterThick()

virtual double slbm::GridProfile::getWaterThick ( )

virtual

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ getWeight()

double slbm::GridProfile::getWeight ( )

inline

A temporary weight storage assignment function (returned reference) used exclusively by the GreatCircle::getWeights(...) function.

Definition at line 202 of file GridProfile.h.

◆ incrementHitCount()

void slbm::GridProfile::incrementHitCount ( )

inline

Definition at line 210 of file GridProfile.h.

◆ setActiveNodeId()

void slbm::GridProfile::setActiveNodeId ( int id )

inline

Definition at line 216 of file GridProfile.h.

◆ setData()

virtual void slbm::GridProfile::setData	(	double *	depths,
		double *	pvelocities,
		double *	svelocities,
		double *	gradients
	)

virtual

Set the P and S velocities and gradients associated with this GridProfile object to specified values.

Parameters

depths	the depths of the interfaces, in km below sea level.
pvelocities	the P velocities stored in this GridProfile, in km/sec.
svelocities	the S velocities stored in this GridProfile, in km/sec.
gradients	a 2-element vector specifying the P and S velocity gradients in the mantle, in 1/sec.

Reimplemented in slbm::GridProfileSLBM.

◆ setDepths()

virtual void slbm::GridProfile::setDepths ( const vector< double > & depths )

virtual

Set the layer depths to specified values.

Parameters

depths the layer depths, in km below sea level.

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ setGradient()

virtual void slbm::GridProfile::setGradient ( const vector< double > & gradient )

virtual

Set the P and S velocity gradients to specified values.

Parameters

gradient the P and S velocity gradients, in km/sec.

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ setVelocity()

virtual void slbm::GridProfile::setVelocity	(	const int &	waveType,
		const vector< double > &	velocity
	)

virtual

Set the P or S velocity to specified values.

Parameters

waveType	either SLBMGlobals::PWAVE or SLBMGlobals::SWAVE.
velocity	the P or S velocity, in km/sec.

Reimplemented in slbm::GridProfileSLBM, and slbm::GridProfileGeoTess.

◆ setWeight()

void slbm::GridProfile::setWeight ( const double & w )

inline

Definition at line 206 of file GridProfile.h.

Member Data Documentation

◆ activeNodeId

int slbm::GridProfile::activeNodeId

protected

Definition at line 230 of file GridProfile.h.

◆ earthRadius

double slbm::GridProfile::earthRadius

protected

Definition at line 248 of file GridProfile.h.

◆ gridProfileClassCount

int slbm::GridProfile::gridProfileClassCount

staticprotected

Definition at line 250 of file GridProfile.h.

◆ nHits

int slbm::GridProfile::nHits

protected

The number of times this node has been 'touched' by a GreatCircle.

The number of times this node has been 'touched' by a GreatCircle. This attribute is incremented in getWeights() once each time this node contributes any weight to any profile object in a GreatCircle.

Definition at line 246 of file GridProfile.h.

◆ nodeId

int slbm::GridProfile::nodeId

protected

The node id of this GridProfile.

Definition at line 228 of file GridProfile.h.

◆ weight

double slbm::GridProfile::weight

protected

A temporary weight storage location used exclusively by the GreatCircle::getWeights(...) function.

Definition at line 237 of file GridProfile.h.

The documentation for this class was generated from the following file:

rstt/SLBM/include/GridProfile.h

Public Member Functions

Static Public Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GridProfile() [1/3]

◆ GridProfile() [2/3]

◆ GridProfile() [3/3]

◆ ~GridProfile()

Member Function Documentation

◆ addWeight()

◆ class_name()

◆ clearHitCount()

◆ depthsToRadii() [1/2]

◆ depthsToRadii() [2/2]

◆ getActiveNodeId()

◆ getClassCount()

◆ getData()

◆ getEarthRadius()

◆ getGeoStackId()

◆ getHitCount()

◆ getInterfaceDepth()

◆ getInterfaceDepths()

◆ getInterfaceRadius()

◆ getMantleGradient() [1/2]

◆ getMantleGradient() [2/2]

◆ getNodeId()

◆ getVelocity() [1/2]

◆ getVelocity() [2/2]

◆ getWaterThick()

◆ getWeight()

◆ incrementHitCount()

◆ setActiveNodeId()

◆ setData()

◆ setDepths()

◆ setGradient()

◆ setVelocity()

◆ setWeight()

Member Data Documentation

◆ activeNodeId

◆ earthRadius

◆ gridProfileClassCount

◆ nHits

◆ nodeId

◆ weight
