Cubit Python API  16.06
Public Member Functions | Protected Member Functions
GeomEntity

The base class for specifically the Geometry types (Body , Surface , etc.) More...

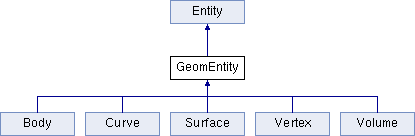

Inheritance diagram for GeomEntity:
Entity Body Curve Surface Vertex Volume

Public Member Functions
std::vector< Body >  bodies ()
  Get the bodies in the GeomEntity. More...

std::vector< Curve >  curves ()
  Get the curves in the GeomEntity. More...

int  dimension ()
  Get the dimensions of the GeomEntity. More...

std::string  entity_name ()
  Return the first name of the GeomEntity. More...

void  entity_name (std::string name)
  Assign a name to the GeomEntity. More...

std::vector< std::string >  entity_names ()
  Return the all the names of the GeomEntity. More...

bool  is_meshed ()
  Return the current mesh state of the GeomEntity. More...

void  mesh ()
  Mesh the GeomEntity. More...

int  num_names ()
  Return the number of names for the GeomEntity. More...

void  remove_entity_name (std::string name)
  Remove a specific name from the list of names assigned to the GeomEntity. More...

void  remove_entity_names ()
  Remove all the names assigned to the GeomEntity. More...

void  remove_mesh ()
  Removes the mesh on the GeomEntity. More...

void  set_entity_name (std::string name)
  Assign a name to the GeomEntity. More...

void  smooth ()
  Smooths the mesh on the GeomEntity. More...

std::vector< Surface >  surfaces ()
  Get the surfaces in the GeomEntity. More...

std::vector< Vertex >  vertices ()
  Get the vertices in the GeomEntity. More...

std::vector< Volume >  volumes ()
  Get the volumes in the GeomEntity. More...

- Public Member Functions inherited from Entity
  Entity ()

  Entity (CubitEntity *entity_ptr)

  Entity (Entity const &copy_from)

  ~Entity ()

std::array< double, 6 >  bounding_box ()
  Get the bounding box of the Entity. More...

std::array< double, 3 >  center_point ()
  Get the center point of the Entity. More...

void  destroy_cubit_entity ()

CubitEntity *  entity_ptr ()

int  id ()
  Get the id of the Entity. More...

int  is_transparent ()
  Get the tranparency state of the Entity. More...

void  is_transparent (int transparency_flag)
  Set the tranparency state of the Entity. More...

int  is_visible ()
  Get the visibility state of the Entity. More...

void  is_visible (bool visibility_flag)
  Set the visibility state of the Entity. More...

Entity &  operator= (const Entity &rhs)

void  set_transparent (int transparency_flag)
  Set the tranparency state of the Entity. More...

void  set_visible (bool visibility_flag)
  Set the visibility state of the Entity. More...


Protected Member Functions
  GeomEntity (const GeomEntity &other)

  GeomEntity (CubitEntity *entity_ptr)


Additional Inherited Members
- Protected Attributes inherited from Entity
CubObserver *  cubitWatcher

CubitEntity *  mEntityPtr


Detailed Description

The base class for specifically the Geometry types (Body , Surface , etc.)

Constructor & Destructor Documentation

◆ GeomEntity() [1/2]

GeomEntity ( CubitEntity *  entity_ptr )
inlineprotected

◆ GeomEntity() [2/2]

GeomEntity ( const GeomEntity &  other )
inlineprotected

Member Function Documentation

◆ bodies()

std::vector<Body> bodies ( )

Get the bodies in the GeomEntity .

std::vector<Body> bodies = geomEntity->bodies();
bodies = geomEntity.bodies()
Returns
A vector (or list) of bodies contained within the GeomEntity

◆ curves()

std::vector<Curve> curves ( )

Get the curves in the GeomEntity .

std::vector<Curve> curves = geomEntity->curves();
curves = geomEntity.curves()
Returns
A vector (or list) of curves contained within the GeomEntity

◆ dimension()

int dimension ( )

Get the dimensions of the GeomEntity .

int dim = geomEntity->dimension();
dim = geomEntity.dimension()
Returns
The dimension of the GeomEntity

◆ entity_name() [1/2]

std::string entity_name ( )

Return the first name of the GeomEntity .

std::string name = geomEntity->entity_name();
name = geomEntity.entity_name()
Returns
The first name of the GeomEntity

◆ entity_name() [2/2]

void entity_name ( std::string  name )

Assign a name to the GeomEntity .

geomEntity->entity_name("Brick1" );
geomEntity.entity_name("Brick1" )
Parameters
[in] name The name to be assigned to the GeomEntity

◆ entity_names()

std::vector<std::string> entity_names ( )

Return the all the names of the GeomEntity .

std::vector<std::string> names = geomEntity->entity_names();
names = geomEntity.entity_names()
Returns
A vector (or list) of all the names of the GeomEntity

◆ is_meshed()

bool is_meshed ( )

Return the current mesh state of the GeomEntity .

boolmesh = geomEntity->is_meshed();
mesh = geomEntity.is_meshed()
Returns
Whether the GeomEntity is meshed or not

◆ mesh()

void mesh ( )

Mesh the GeomEntity .

geomEntity->mesh();
geomEntity.mesh()

◆ num_names()

int num_names ( )

Return the number of names for the GeomEntity .

int num = geomEntity->num_names();
num = geomEntity.num_names()
Returns
The number of names for the GeomEntity

◆ remove_entity_name()

void remove_entity_name ( std::string  name )

Remove a specific name from the list of names assigned to the GeomEntity .

geomEntity->remove_entity_name("Brick1" );
geomEntity.remove_entity_name("Brick1" )
Parameters
[in] name The name to be removed from the list of names assigned to the GeomEntity

◆ remove_entity_names()

void remove_entity_names ( )

Remove all the names assigned to the GeomEntity .

geomEntity->remove_entity_names();
geomEntity.remove_entity_names()

◆ remove_mesh()

void remove_mesh ( )

Removes the mesh on the GeomEntity .

geomEntity->remove_mesh();
geomEntity.remove_mesh()

◆ set_entity_name()

void set_entity_name ( std::string  name )

Assign a name to the GeomEntity .

geomEntity->set_entity_name("Brick1" );
geomEntity.set_entity_name("Brick1" )
Parameters
[in] name The name to be assigned to the GeomEntity

◆ smooth()

void smooth ( )

Smooths the mesh on the GeomEntity .

geomEntity->smooth();
geomEntity.smooth()

◆ surfaces()

std::vector<Surface> surfaces ( )

Get the surfaces in the GeomEntity .

std::vector<Surface> surfaces = geomEntity->surfaces();
surfaces = geomEntity.surfaces()
Returns
A vector (or list) of surfaces contained within the GeomEntity

◆ vertices()

std::vector<Vertex> vertices ( )

Get the vertices in the GeomEntity .

std::vector<Vertex> vertices = geomEntity->vertices();
vertices = geomEntity.vertices()
Returns
A vector (or list) of vertices contained within the GeomEntity

◆ volumes()

std::vector<Volume> volumes ( )

Get the volumes in the GeomEntity .

std::vector<Volume> volumes = geomEntity->volumes();
volumes = geomEntity.volumes()
Returns
A vector (or list) of volumes contained within the GeomEntity
