ITEM Tutorial Step 2

Step 2: Setup The FEA Model

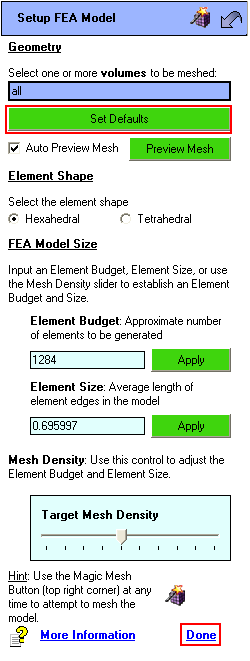

• Click on Setup the FEA model
• Click on Set Defaults (this determines a default mesh size and populates the fields accordingly-it also previews the mesh if the Auto Preview Mesh checkbox is checked)

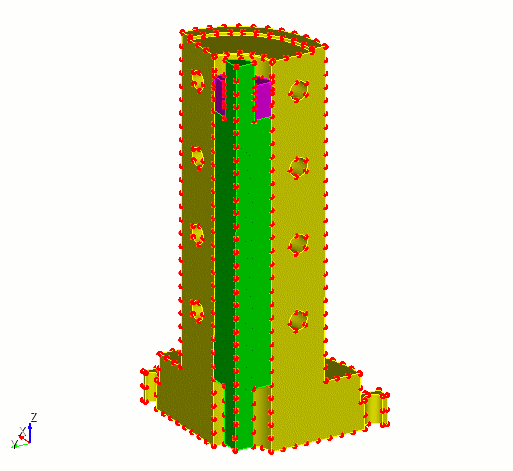

• Examine the preview mesh

• Click Done to return to the previous page.
• Click Done again to return to the main ITEM task page
