ITEM Tutorial Step 1

Step 1: Import Geometry

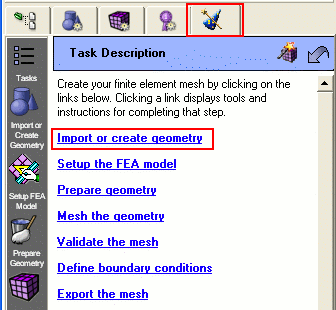

• Click on ITEM tab on the power tools panel on the left hand side of the screen.
• Click on Import or create geometry

• Click on Import a CAD model
• Click on Acis
• Browse for the "item_tutorial.sat" file and import. The file may be in the Cubit directory/folder under 'tutorials.'
• Leave the default options selected on the import dialog box.
• Click Done
• Click Done

In most cases, clicking the Done button also acts like a "Back" button. Clicking Done will return the user to the previous page while preserving any changes made on that page.
