4.2.1. Finite element model

The model discretization (mesh database) and the mesh components to be used in the model are defined at the Sierra scope and are later referenced by the application at the Region level. Specification of a mesh database and association of material properties with portions of the mesh are defined within the Finite Element Model command block. In coupled analyses the need often arises for different discretizations of the same physical domain. In this case one must supply a different Finite Element Model command block for each discretization since only a single mesh can be referenced within this command block.

4.2.1.1. Defining the Mesh Database and Decomposition Method

The mesh database can be defined as follows:

Database name {=|are|is} <StreamName>

Where the <StreamName> is the base name containing the output or input mesh. If the filename begins with the / character, it is an absolute path; otherwise the path to the current directory (where the input file is) will be prepended to the name. If this command line is omitted, then an assumed filename is used; this will be the basename of the input file with a .g suffix appended. The most commonly used database formats are Exodus and Genesis (.e and .g suffix, respectively). The database type defines the format used for the input/output mesh:

The mesh can be partitioned across processes for parallel runs through a variety of decomposition methods; the particular method used can be defined with the following command line:

Decomposition Method {=|are|is} <MethodName>

The most commonly used parameters for <MethodName> are rcb (Recursive Coordinate Geometric Bisection) and rib (Recursive Inertial Bisection). If this command line is not specified, then the default method is rcb if the input mesh file is not already pre-decomposed. A simple example of defining a database name and its decomposition method for a finite element command block is shown below:

Begin Finite Element Model The_Model
   Database Name = the_mesh.g
   Decomposition Method = rib
End

4.2.1.2. Coordinate System Specification

The coordinate system is specified with the command

Coordinate System {=|are|is} <CoordSystem>

where <CoordSystem> is Cartesian, Axisymmetric, or Cylindrical. The Cartesian coordinate system is used for standard 2D and 3D simulations. Axisymmetric is used for scalar-only problems, where the input mesh is 2D and vectors are output with length 2. Cylindrical can be used for both scalar and vector problems, and the vector and tensor output contain all three dimensions. Cylindrical is preferred. For both Cylindrical and Axisymmetric, the symmetry axis is specified with the axisymmetry axis command in the Aria Region block.

4.2.1.3. Mesh Database Part Names and Assemblies

The input mesh database can be created by a variety of mesh generators. These mesh databases can contain parts of the mesh that either have user-defined names or utilize a default internal naming convention used for the meshed entity/part with a numbered index (e.g. surface_1, block_8). Fig. 4.1 below shows an example of a mesh using the default enumerating scheme.

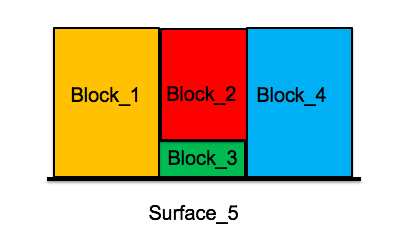

Fig. 4.1 Enumerated blocks

In the following sections, we will refer to Fig. 4.1 to demonstrate example commands of setting up the finite element model command block.

4.2.1.4. Mesh Part Material Assignments

Assignment of the associated material can be accomplished in two different ways. The first way is using a command block

Begin Parameters for Block block_2
  material 304L
End

Begin Parameters for Block block_3
  material 304L
End

Begin Parameters for Block block_1
  material cu
End

Begin Parameters for Block block_4
  material cu
End

This individually assigns a material 304L to the two inner blocks and cu to the two outer blocks in Fig. 4.1. The above command block can be further shortened by assigning materials to more than one block at a time:

Begin Parameters for Block block_2 block_3
  material 304L
End

Begin Parameters for Block block_1 block_4
  material cu
End

The other way of assigning materials is an one-line command, which is even more succinct:

use material 304L for block_2 block_3
use material cu for block_1 block_4

Finite Element Model Parameters shows a summary of commands used to assign materials to parts of the mesh.
