Generating a Mesh in ITEM

The mesh generation panel in ITEM is different from the other panels in Cubit. Meshing errors can arise from a number of different problems. Many of these problems are caused from improper geometry preparation/cleanup. Other problems can be caused from improper interval settings, or meshing schemes. Instead of suggesting specific operations as it does on other panels, the meshing panel in ITEM will suggest several possible solutions based on the error message output. Each of these solutions may require significant user input, and may require you to revisit previous ITEM panels or Control panels. To open the appropriate Control panel, you can right click on the solution and select "Show Command Panel". For convenience, these general solutions are described here, including which ITEM panels and which Control panels they refer to. References to help topics are also included.

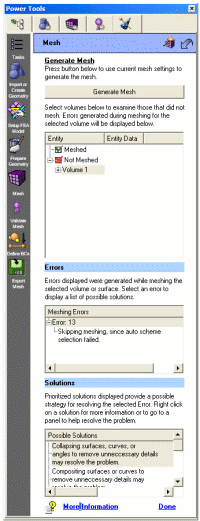

Figure 1. ITEM Mesh Panel

ITEM Meshing Suggestions

  1. The volume is not decomposed enough. It may need to be webcut.

    Diagnostic: This solution message appears when auto scheme selection fails. There are many reasons that auto scheme selection may have failed. Check to make sure that your volume is broken up into meshable parts. For sweepable volumes, this means that each volume should only have one target surface.

    Action: Right-clicking on this solution and selecting the "Show command panel" option will open the webcutting commands on the control panel. Alternatively, you can also return to the ITEM decomposition panel for more webcutting suggestions.

    Help Topics:
    Geometry Decomposition explains diagnostics and solutions on the ITEM decomposition panel
    Decomposition Tutorial has several webcutting tips and examples.
    Web Cutting Documentation contains all of the syntax for webcutting commands in Cubit.
  2. Meshing schemes may need to be manually set.

    Diagnostic: This solution message appears when auto scheme selection fails, interval matching fails, or interval assignments fail. Setting the schemes manually may help resolve some of these issues. It may also help to set source and target surfaces explicitly for swept meshes.

    Action: The volume schemes can be set explicitly from the Volume-Mesh control panel. The "Set Source and Target" panel in ITEM can be used to aid in setting explicit source and target surfaces for swept meshes.

    Help Topics:
    Recognizing Nearly Sweepable Regions explains how ITEM might be used to recognize nearly sweepable regions.
    Meshing the Geometry has some suggestions for getting difficult geometry to mesh.
    Decomposition Tutorial has several examples where the meshing schemes have to be set manually.
    Meshing Schemes gives an overview of all of the meshing schemes in Cubit.
  3. The mesh size or number of intervals on a volume may need to be changed.

    Diagnostic: This solution message appears for many reasons: auto scheme selection fails, interval matching fails, interval assignments fail, inconsistent edge-face ratios, odd number of intervals on a paver loop, or connectivity problems. Setting explicit intervals may be necessary

    Action: The volume mesh intervals can be set explicitly from the Volume-Interval control panel. The "Set Element Sizes" panel in ITEM can be used to aid in setting explicit sizes and sizing functions for meshes.

    Help Topics:
    Interval Assignment has links to different interval assignment methods in Cubit
    Bias, Dualbias describes how to create a biased mesh and Controlling Mesh Quality describes how to propagate a curve bias.
    Decomposition Tutorial has several examples where the meshing intervals are set manually.
    Mesh Adaptivity and Sizing Functions describes how to use sizing functions in Cubit.
  4. Compositing surfaces or curves to remove unnecessary details may resolve the problem.

    Diagnostic: This solution message appears when auto-scheme selection fails. A model may contain small curves or surfaces that need to be composited with adjacent surfaces. Or it may just contain more detail than is needed for analysis. Compositing surfaces and curves does not affect the underlying geometry.

    Action: The Remove Small Features or Force Sweep Topology panels in ITEM may suggest several possible candidates for compositing. The Surface-Modify-Composite or the Curve-Modify-Composite panels can be used to composite surfaces or curves respectively. These panels are also used to delete virtual geometry from curves or surfaces.

    Help Topics:

    Removing Small and Narrow Features describes using ITEM to remove small and narrow features in your model.
    Forced Sweepability describes using ITEM to force sweepability using virtual geometry.
    Composite Curves explains how to composite curves in Cubit.
    Composite Surfaces explains how to composite surfaces in Cubit.
    Decomposition Tutorial Example 7 has an example of using composite curves to improve meshability.
    Power Tools Tutorial has another example of using composite geometry.

  5. Collapsing surfaces, curves, or angles to remove unnecessary details may resolve the problem.

    Diagnostic: This solution message appears when auto-scheme selection fails. Collapsing a surface involves splitting a surface, and compositing it with adjacent surfaces.

    Action: The Remove Small Features panel in ITEM may suggest several possible candidates for collapse. The Surface-Modify-Collapse, Curve-Modify-Collapse, or Vertex-Modify-Collapse Angle panels can also be used to collapse surfaces, curves, or angles respectively.

    Help Topics:
    Removing Small and Narrow Features describes using ITEM to remove small and narrow features in your model.
    Collapse Angle explains how to collapse angles in Cubit.
    Collapse Curves explains how to collapse curves in Cubit.
    Collapse Surfaces explains how to collapse surfaces in Cubit.
  6. Removing unnecessary surfaces or curves to simplify geometry may improve the chances that a volume will mesh.

    Diagnostic: This solution message appears when auto-scheme selection fails. Removing unnecessary surfaces may improve meshability.

    Action: The Remove Small Features panel in ITEM may suggest several possible candidates for removal. The Surface-Modify-Tweak panel, Surface-Modify-Remove panel, Curve-Modify-Tweak or the Volume-Modify-Remove Slivers panels are also used to remove unnecessary features in a model.

    Help Topics:
    Removing Small and Narrow Features describes using ITEM to remove small and narrow features in your model.
    Removing Geometric Features describes the syntax for removing unneeded surfaces and vertices, including sliver surfaces.
    Tweaking Geometry contains the syntax for tweaking surfaces, curves, and vertices.
    Power Tools Tutorial has an example of using the tweak surface command to simplify a model.
  7. Smoothing the mesh may improve the mesh quality.

    Diagnostic: This solution message appears when mesh generation creates poor quality elements, particularly if it creates inverted or "negative Jacobian" elements. In some cases, smoothing a mesh may get rid of these bad elements.

    Action: Depending on the geometry type, the smoothing panel can be accessed from the Control panel under Volume-Smooth or Surface-Smooth panels. It is also helpful to use the Validate Mesh page in ITEM for assessing quality metrics.

    Help Topics:
    Mesh Smoothing describes the different smoothing schemes in Cubit and how to use them.
    Mesh Validation describes how to use quality metrics in ITEM and gives suggestions on smoothing schemes to try.
    Mesh Quality Assessment describes the different quality metrics in Cubit and how to use them.
  8. Deleting the mesh on an entity in order to further decompose or modify it may be necessary.

    Diagnostic: This solution message appears when mesh generation creates a poor quality mesh, due to negative Jacobians, inconsistent edge-face ratios, connectivity problems, or any other invalid mesh configuration. Mesh generation can be a very iterative process. It is sometimes necessary to delete a mesh and try different schemes, sizes, or even just change the meshing order. Sometimes you must further decompose or modify your geometry to get it to mesh.

    Action: To delete a mesh, you can select it in the graphics window and choose Delete Mesh from the right-click context menu. You can also delete a mesh from any of the Mesh-Entity-Delete panels on the Control Panel.

    Help Topics:
    Mesh Deletion describes command line syntax for deleting a mesh.
  9. Changing vertex types may make the surface or volume meshable.

    Diagnostic: This solution message appears when mesh generation fails to assign valid vertex types on mapped or submapped surfaces.

    Action:To change the vertex type on a surface, select the Surface-Mesh-Submap-Advanced or Surface-Mesh-Map-Advanced panels. From here you can assign and view vertex types.

    Help Topics:
    Surface Vertex Types describes how to change the vertex types on a geometry.
