Super Sizing Function hammer

Note: This feature is under development. The command to enable or disable features under development is:

Set Developer Commands {On|OFF}

The Super sizing function computes both the Curvature and the Linear function and takes the smaller value of the two. This is an alpha feature and should be used with caution. The following is an example of Super element sizing.

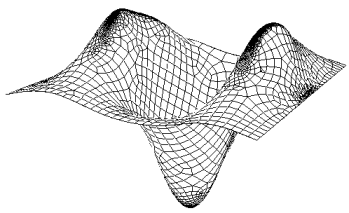

Figure 1. NURB mesh with super sizing function, 34 by 16 density
