ITEM Tutorial

Step 9: Export the Exodus Model

Cubit primarily supports the Exodus format for mesh export. But there are also limited export abilities for other formats as well. For a list of export capabilities see Exporting the Finite Element Model

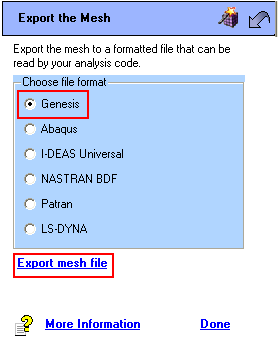

• Click on the Export the Mesh link from the main ITEM task page

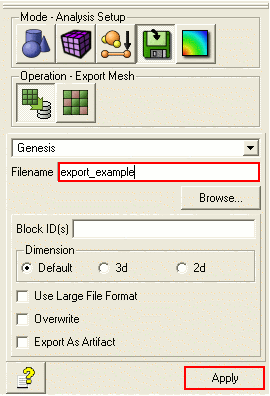

• Set the export type to Genesis. This opens the export mesh dialog box on the command panels.

• Assign a filename
• Click Apply (all blocks will exported by default).

•

  Congratulations on completing the ITEM tutorial. Click on the arrow to return to the main tutorial page.
