GUI Basic Tutorial

Step 3: Creating the Cylinder

Now you must form the cylinder which will be used to cut a hole in the brick.

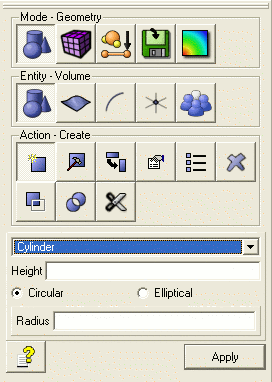

• Select Cylinder from the Create combo box.

• Enter 12 for the height and 3 for the radius. Then select Apply.

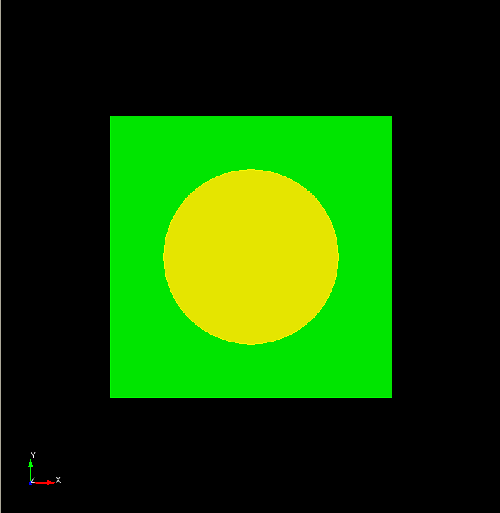

The brick and the cylinder should appear in your display window as shown below:

Brick and Cylinder
